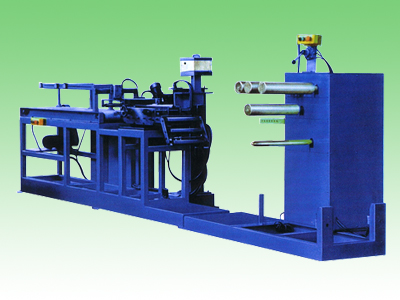

TC-1 The automatically length cutting process for motorcycle's tyre surface | | |
Specifications
TYPE |
¡¡TC-1 |
¡¡Cut-off Angle |
¡¡25-30¡ã |
¡¡Cut-off Accuracy |
¡¡¡À1.5mm |
¡¡Cutting speed |
¡¡2times/min |
¡¡Width of Tread |
¡¡340mm(or design according to customer) |
¡¡Thickness of Tread |
¡¡18mm |
¡¡Length of machine |
¡¡4545mm |
¡¡Transmission Motor |
¡¡YSJ180W 380V 50Hz i:50 30r/min |
¡¡Pressure of compressed Air |
¡¡0.5-0.7MPa |
¡¡Control mode |
¡¡PLC program control | | | [Return] [Print] |
|
