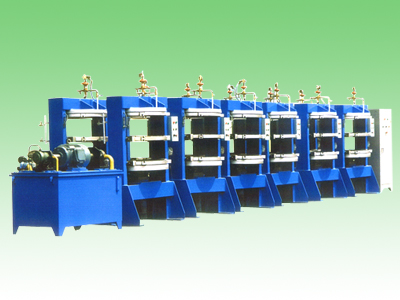

YNL-6 Hydraulic Frame Double-layer Automatic Inner-tube | | |
Specifications
¡¡TYPE |
¡¡YNL-6 |
¡¡close-die force |
¡¡20T(variable) |
¡¡open-die distance |
¡¡220mm(variable) |
¡¡work layer |
¡¡2 |
¡¡model shutting time |
¡¡<=4Second |
¡¡work external diameter |
¡¡ø750 (variable) |
¡¡steam pressure |
¡¡0.6-0.8mPa |
¡¡inner pressure |
¡¡0.6-0.8mPa |
¡¡hydraulic work pressure |
¡¡15.4mPa |
¡¡outline of major body (length x width x height) |
¡¡1250mmx850mmx1750mm |
¡¡outilne of auxiliary body (length x width x height) |
¡¡1300mmx1000mmx1100mm |
¡¡weight of major body |
¡¡¡Ö1.5T(single) |
¡¡weight of hydraulic station |
¡¡¡Ö0.5T | | | [Return] [Print] |
|
