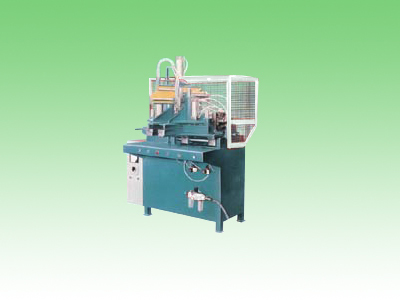

CJD-Y200 butyl inside tyre joiner | | |
Specifications
Surface width |
30-200mm |
Circumference length of inside tyre |
500mm |
Thickness of two-layer inside tyre |
6mm |
Normal circulation |
15-25Sec |
Normal circulation |
0.6-0.8Mpa |
Air source pressure |
30Ndm3 cydc |
Operating power voltage |
380V 220V 50HZ |
Max joining pressure |
1600kg |
Max clipping pressure |
250kg |
Temperature of electricity heated knife |
0-500¡æ |
Overall dimension |
1300x1100x1800mm |
Total weight |
0.8T | | | [Return] [Print] |
|
